The Barge Dock - Structural Assessment (Kingston upon Thames)

Project Overview

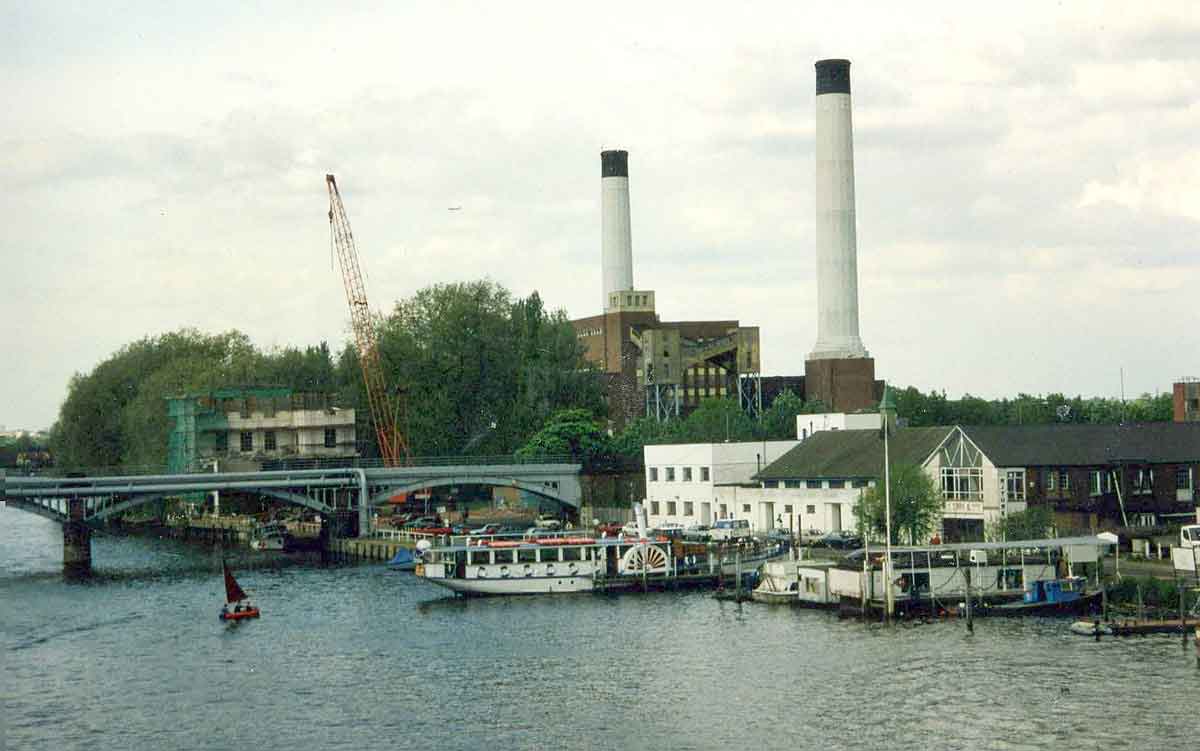

GEM Enterprise carried out a detailed structural assessment of The Barge Dock in Kingston upon Thames (originally part of Kingston Power Station) to evaluate current condition and specify make-safe and repair works. The dock had not benefitted from recent inspections or significant maintenance. Our scope focused on structural safety, arresting deterioration, and setting a practical pathway to bring the dock back into reliable use and manageable maintenance.

Structure: Historic barge dock (mass concrete and reinforced concrete with timber fendering)
Primary defects: Severely decayed fender timbers; spalled concrete exposing reinforcement; widespread biological growth (moss/algae/mould) indicating retained moisture
Deliverables: Annotated defect drawings; prioritised repair schedule; outline details for timber replacement and concrete repairs; cleaning methodology; maintenance regime

Severe decay of fendering timbers

Finding: Fender strips and sacrificial timbers heavily degraded.
Risk: Loss of impact protection for craft and the dock edge; local damage to parent concrete during berthing.

Concrete damage with exposed reinforcement

Finding: Areas of spalling and delamination exposing steel.
Risk: Ongoing corrosion and section loss; reduced durability and potential for localised failure if left untreated.

Biological growth and moisture retention

Finding: Moss, algae and mould across shaded/constantly damp surfaces.
Risk: Accelerated deterioration, slippery walking surfaces, and impeded drainage.

1) Timber fendering replacement (immediate priority)

Replace decayed members with marine-grade fendering (e.g., sustainably sourced greenheart/oak, or recycled composite fenders where appropriate).
Stainless/galvanised fixings; isolation washers to reduce bimetallic risk at steel interfaces; sacrificial rub-boards where frequent contact is expected.
Allow for replaceable wear pieces to simplify future maintenance.

2) Concrete repairs to arrest corrosion

Break out defective concrete to sound substrate; clean and passivate exposed reinforcement; reinstate with a BS EN 1504 compliant repair system (primer, repair mortar, bonding/curing as specified).
For edges/arrises, use fibre-reinforced repair mortars and formwork to restore geometry; re-coat with a protective anti-carbonation finish in splash zones.
Where section loss is significant, introduce local stainless anchors/dowels to secure repairs to the parent structure (to BS 8539 principles).

3) Cleaning & biological control

Pressure-wash surfaces within agreed pressure limits to avoid substrate damage; apply biocide suitable for aquatic environments.
Reinstate/clear drainage paths; consider slip-resistant finishes on access steps/walkways.

4) Method, access and environmental controls

Prepare a method statement covering floating plant access or pontoon work, exclusion zones, debris containment and waste handling.
Liaise with the local navigation authority (non-tidal Thames) regarding access windows/closures; schedule works to avoid fish-spawning periods and comply with pollution prevention measures (silt curtains, spill kits).
Apply permit-to-work controls for over-water operations; ensure rescue provision and life-saving equipment are in place.

Safety improved: reinstated impact protection and removal of immediate hazards.
Durability restored: concrete repairs and protective finishes arrest corrosion and extend service life.
Manageable upkeep: a planned maintenance regime (inspection/cleaning intervals; fender wear-piece replacement) reduces future cost and risk.

Condition survey & defect mapping · Fendering replacement design · Concrete repair specification · Cleaning/biocide methodology · Over-water method & environmental inputs · Maintenance plan & inspection schedule
